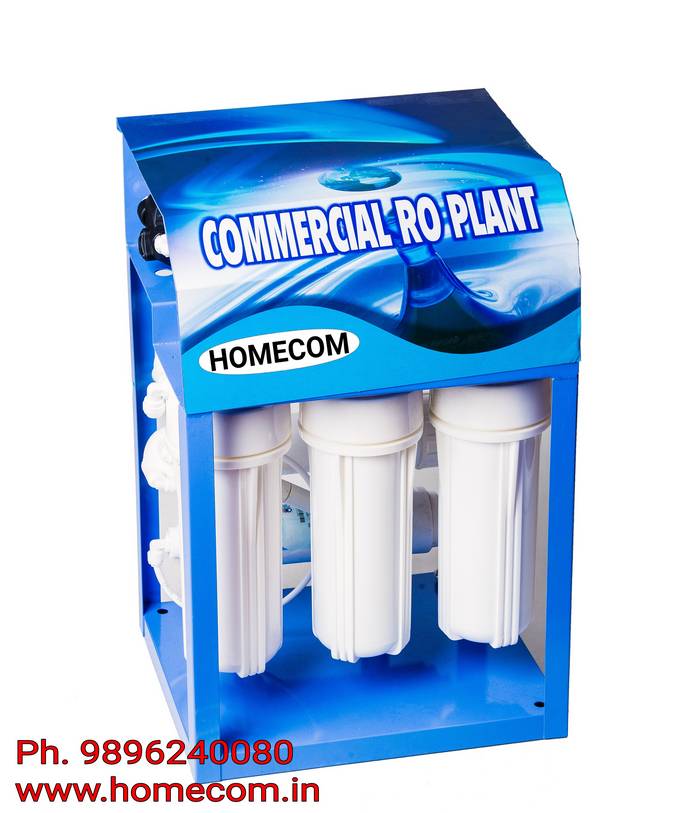

RO 25 LPH
5 Stage water purification systems
RO 25 LPH OF produces purified drinking water, 25 liters per hour. This model provides pure and safe drinking water by removing physical, Microbiological as well as the chemical impurities of water. It can be used in offices, Petrol pumps, Restaurants etc.
Technical Specification
MODEL: RO 25 WITH COOLER
Sr. No. Description
1. Type Hermetically Sealed gas compressor
2. Capacity 20 LPH Cooling Capacity
3. Power Consumption 220 V, 50 Hz Volts
4. Make Emerson or equivalent
5. Body Make SS
6. Cooling Temperature 12° to 18 ° C
Sr.No. Description Specifications
1. Pre Filter………………………………………………..10” x 5” Micron Poly Propylene
2. Pre Filter………………………………………………..10” Granulated Activated Carbon
3. Carbon Filter …………………………………………10” Activated Carbon Block Filter
4. Booster Pump………………..……………… 300 gpd To Pressurize 80 psi (1.8 lpm)
5. Membrane ..................................................................................75/80 GPD - 2 Nos.
6. Post Carbon Filter ....................................................................1 Nos
7. Production Rate ........................................................................Up to 25 Lph
8. Cooler storage Cold tank .......................................................15 lit. Tank
9. Cooler Storage Normal tank …………………………………10 lit. Tank
10. Reject Water ...............................................................................App. 65%
11. Special Feature……………………..Automatic with Low & High Pressure Switch.
