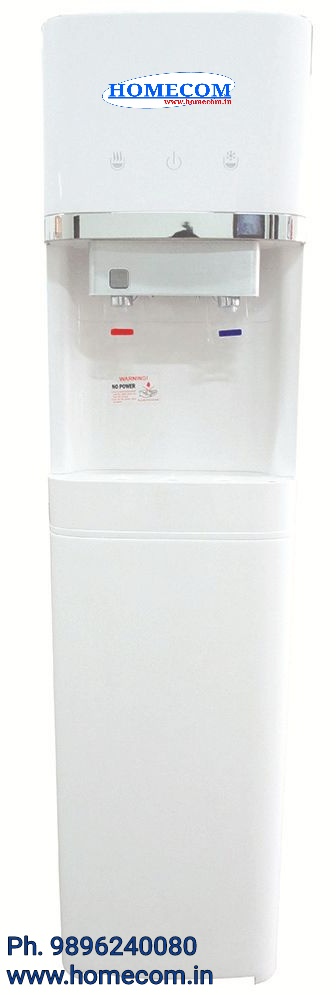

We have a competent team working with us who help us in manufacturing and supplying a huge assortment of UV Water Dispenser. Capable of performing triple operations like carbon filtration, ultra filtration and ultraviolet radiation sterilization, this type of water dispenser works on the principle of cross flow filtration. There is a feature of automatic memory function in the UV Water Dispenser that allow to preserve the user- defined settings even in the power failure situation.
Features
Further Details
Automatic UV Water Dispenser is made of UF modules, activated carbon filter, power controller, TIME PROGRAMMABLE controller, electric ball valves.
Max Pressure
0.4 Mpa
Max Trans membrane Pressure
0.2 Mpa
Normal Operation Pressure
0.1 - 0.2 Mpa
Backwash Pressure
Ph Value
2 - 10
Max Allowable Concentration of free chlorine (Long Time)
50 mg/L
Max Allowable Concentration of free chlorine (Short Time)
< 300 mg/L
Operation Mode
Deed-end & Timing Flushing and Backwashing
Max Operating Temperature
< 40° C
Membrane Characteristics
Hydrophilic / Double Skin
Membrane Material
PAN
MWCO
50,000 Dalton
Membrane Area
10 mm
Fiber Internal Diameter
1.0 mm
Fiber External Diameter
1.6 mm
Number of Hollow “ Fiber
3000 piece
Membrane Module Size
90 x 1260
Inlet & Outlet Point Diameter
DN25 mm
Max Air Pressure for Integrity Test
Flux ( 0.1 Mpa, 25° C
2 T/H
