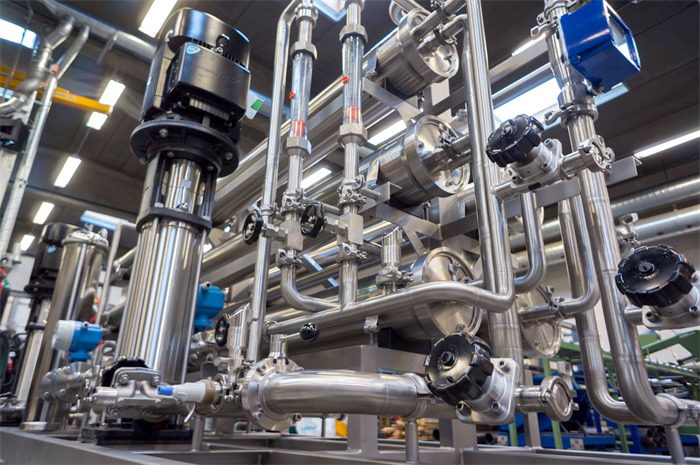

Our offered Reverse Osmosis System is gaining immense accolades from the clients for providing a reliable solution for water purification. Working on the principle of reverse osmosis, in this system, the raw water is passed through a semi-permeable membrane. Passing through this semi- permeable membranes, all the dissolved matters present in water are trapped leaving behind the pure water. Our clients can get this Reverse Osmosis System from us at industry leading prices.
Features
TECHNICAL SPECIFICATION RO 500 SUPPER
1
Skid
MOC
SS
No.
Make
HI-TECH
Capacity
RO 500 Ltr.
Type
Rectangle
2
Feed Pump
Self Priming
Crompton
900 LPH
Pressure
3.5 KG/ CM2
Power Consumption
1 HP
3
Sand Filter
Vertical
Diameter
12 Inch
Height
48 Inch
FRP
Aventura
Type of Operation
Manual
Back wash Time
15-20 minutes
Size of multi port valve
4
Activated Carbon Filter
5
Anti Scaling dosing system
Pump
1 Set
Aqua Italy / E-Dose / Hi-tech
Quantity
Electronic Diaphragm Type
0 to 4 LHP
Quantity of Tank
1 Nos.
Capacity of Tank
100 Liters
MOC of Tank
HDPE.
6
Cartridge Filter Housing
Flow rate
1 M3/hr.
Length of Housing
20
Dia. Of Housing
No. of Cartridge Housing
2 Nos.
7
Micron Cartridge Filter
PP
Length of Cartridge
Dia. Of cartridge
No. of Cartridge
Rating
5 Micron
Hitech
8
Pressure Pump
Vertical centrifugal multi stage
CNP
Power consumption
2 HP
Flow
1 M3
10-12 Kg/CM2
9
Pressure Tube
Item
RO module consisting of membrane Housing With RO membrane mounted on skid.
Dia.
Length
42
Qty.
10
Membrane
TFC POLYAMIDE
Size
4 dia. x 40 BW 30-40X40
Without Membrane
0.0001 Micron.
A
Digital Conductivity OR TDS Meter
Maximum Temperature
40 Degree Centigrade
Location
RO Permeate.
B
Flow Indicators
Float Type Panel Mounted.
Maximum Op. Temp.
40 Degree Centigrade.
Measuring Points
RO Module Feed & Product Flow
C
Pressure Gauges
Range
0-4 & 0-35 Kg / Cm2.
1) RO Module Inlet.
2) RO Module Reject Flow
D
High Pressure Switch And Low Pressure Switch
1+1 Nos.
Before & After High Pressure Pump.
E
Pressure Control Valve
Reject Water Line
Nos.
F
Auto Flushing switch with Solenoid Valve.
G
Gelco Starter
UPVC pipe line
