We have designed the proposed Water Treatment System based on following Water Analysis,
Sr. No.
Parameter
Analysis Value.
1
Total Dissolved Solids
1000 ppm (Max.)
2
Turbidity
<1 NTU
3
SDI
<4
4
Heavy metals
NIL
5
Organics And Bacteria
6
Oil And Grease
7
Residual Chlorine
8
Temperature ( °C )
< 40.
9
Color
Color Less
10
Odor
Odor Less
11
BOD & COD
TDS
< 50 ppm.
PH
7.0 +/ - 0.2
Nil.
Value.
Feed Flow Rate.
10000 LPH
Product Flow Rate
6000 LPH
Recovery.
60%

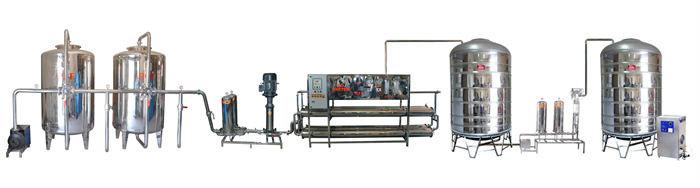

Description
Raw Water Pump
Sand Filter AUTO
Anti Scaling Dosing System
20 Micron Sediment Pre Filter
5 Micron Sediment Pre Filter
High Pressure Pump
RO Module
RO Product water storage Tank (By Client)
The End Water quality shall be achieved subjected to:
1. Feed quality is same as specified in your enquiry. In case of any change in the quality of raw water, the same may have an implication on the Operating parameters and End- water quality of the system.
2. Feed limiting condition mentioned in our offer is strictly maintained.
3. Operation of Water treatment plant is strictly followed in totality as per our operating manual & instructions.
Skid
MOC
SS
No.
Make
HI-TECH
Capacity
RO 6,000 Ltr.
Type
Rectangle
Feed Pump
Centrifugal
Crompton / Kilosker / Lubi / Equi
12 M3
Pressure
3.5 KG/ CM2
Power Consumption
5 HP
Dual media Filter
Vertical
Diameter
24 Inch
Height
72 Inch
FRP
Type of Operation
AUTO
Back wash Time
10-15 minute.
Size of multi port valve
1.5”
Anti Scaling dosing system
Pump
1 Set
Aqua Italy / E-Dose / Hi-tech
Quantity
Electronic Diaphragm Type
0 to 4 LHP
Quantity of Tank
1 Nos.
Capacity of Tank
220 Liters
MOC of Tank
HDPE.
Cartridge Filter Housing
Flow rate
15 M3/hr.
Length of Housing
20”
Dia. Of Housing
4”
No. of Cartridge Housing
4 Nos.
Micron Cartridge Filter
10 M3/hr.
PP
Length of Cartridge
Dia. Of cartridge
No. of Cartridge
Rating
20 Micron(2 nos) + 5 Micron(2 nos).
“Purtrex”, Osmonics, USA.
Pressure Pump
Vertical centrifugal multi stage
Grundfos
Power consumption
10 HP
Flow
10 M3
12-16 Kg/CM2
Pressure Tube
Item
RO module consisting of membrane Housing With RO membrane mounted on skid.
Dia.
8”
Length
120”
Qty.
2 Nos.
Membrane
TFC POLYAMIDE
Size
8” dia. x 40” BW 30-80X40
6 Nos.
Flimtech(Dow)/CSM/ Hydranautics /Hi-Tech
A
Digital Conductivity OR TDS Meter
Maximum Temperature
40 Degree Centigrade
Location
RO Permeate.
B
Flow Indicators
3 Nos.
Float Type Panel Mounted.
Maximum Op. Temp.
40 Degree Centigrade.
Measuring Points
RO Module Feed ,Product ,WasteFlow
C
Pressure Gauges
5 Nos.
Range
0-4 & 0-35 Kg / Cm2.
1) After Feed Pump.
2) After Sand Filter.
3) After Carbon Filter.
4) After Micron Filter.
5) After High Pressure Pump.
D
High Pressure Switch And Low Pressure Switch
1+1 Nos.
Before & After High Pressure Pump.
E
Pressure Control Valve
Reject Water Line
Nos.
Globe Valve
F
Auto Flushing switch with Solenoid Valve.
G
Electronic Control Panel With A meter, Voltmeter, indicators, On off Switch
